PFM

Introduction

The Personal Financial Manager (PFM) today is the hub of digital banking. Fabrick's PFM product is an independent project that provides the Retail Customer with a "personal trainer" with personalized tips and advice for managing their financial situation and budget in order to better manage their money and find a good financial balance .

PFM is mainly dedicated to retail (consumer) accounts, in case of business accounts it is possible to request an in-depth meeting on the project called BFM (Business Financial Manager).

The project is very broad and describing all its features and potential is out of scope of this guide, in which we will focus only on a single service: GET GetPfmTransactions. This service returns the list of PSU transaction exactly like the services relating to the transactions described up to now, but also enriches, in real time (Near real-time), every single transaction with a series of additional information.

For both TPP and FPP the response obtained following a request for PFM transactions is exactly the same and is described below. The request APIs instead vary slightly and you can refer to the related documentation for implementation details, in any case this is the path:

.../movements/transactions

An update is available in which all fields are in English. It is possible to choose one or the other model by simply inserting en in the path as shown below:

.../movements/en/transactions

To date, Pass products still only have the italian version. It will be updated soon

A response example is shown below:

{
    "errors": [],
    "status": "OK",
    "payload": {
        "list": [{
            "id": 4237,
            "bankId": "5",
            "bankProfileId": "2964",
            "accountId": 10105,
            "userId": "1",
            "tppUid": "123456",
            "isTemporary": false
            "propBankTransactionCode": null,
            "tipoOperazione": "alt",
            "importo": 1.0,
            "stato": "ESEGUITO",
            "tipo": "income",
            "causaleStructured": null,
            "causale": "VOSTRADISPOSIZIONEBONIFICOURG./ISTANTANEO",
            "remittanceDescriptions": []
            "remittanceAdditionalInfo": []
            "bankReference": "123"
            "data": 1621893600000,
            "valueDate": 1621893600000,
            "createdDate": 1623140347621,
            "accounted": true,
            "recurrent": false,
            "categoria": "entertainment",
            "sottoCategoria": "sportEvents",
            "cro": null,
            "nomeBeneficiario": null,
            "merchant": "aMerchant",
            "merchantCity": "Milano",
            "mcc": "1234",
            "numeroContoAddebito": null,
            "numeroContoAccredito": null,
            "reference": null,
            "entryReference": null,
            "divisa": "EUR",
            "eseguitoDa": null,
            "ibanBeneficiario": null,
            "saldo": 3020803002.84,
            "saldoDisponibile": 3020803002.84,
            "isBookingDateForged": false,
            "normalizedMerchant": null
        }, {
            "id": 4238,
            ...
        }]
    }
}

According to the PSD2 regulation the only mandatory fields are amount, reason and date. All the fields described below will therefore be filled in only if the final bank returns that particular information. Some information is returned directly, while others are enhanced thanks to an analysis work by Fabrick on the complete bank reason (obviously more complete than the reason entered by the customer).

All unvalued parameters will not appear in the response and will therefore be considered null.

As regards the categoria, sottoCategoria and tipoOperazione parameters, refer to next tables.

Some details about the output:

• saldo: indicates the account balance updated to Fabrick's latest request to the bank. It's based on the currency of the account, for example if the account currency is in EUR saldo will be in EUR and if the account currency is USD the saldo will be in USD currency. It is recommended to use the most complete service dedicated to get the balances information (see doc Balances details)
• importo: indicates the amount of the transaction
• currency: the currency of the account

In the event that it is a currency transaction, the following additional parameters will be available:

• importoDivisa
• tassoCambio

The value of the importo parameter will be calculated as importoDIvisa / tassoCambio.

In the answer you can find another paramater:

• tassoBce: for PSD2 you can ignore this parameter, it is useful only for native transactions and not for PSD2 transactions.

In the request you can specify the following query parameters to filter and / or sort the required resources:

• fromDate and toDate (will be deprecated, see "Searching by date" section): the time interval within which the transactions are to be displayed; They refer to the data parameter; they have to be in epochTime in ms.
• fromCreatedDate and toCreatedDate (will be deprecated, see "Searching by date" section): the time interval within which the transactions are to be displayed; they refer to the createdDate parameter; they have to be in epochTime in ms.
• sortBy: it allows you to sort the transactions according to any parameter relating to the response model, the default value is createdDate. Use or ‘-’ for descending order (es. sortBy=-data)).
• future: flag that allows, if true, to show pending transactions (only for TPP and depends on the final banks if they are available);
• category: any valid category. Multiple values allowed;
• type: the transaction type, income or outcome;
• fromAmount: to obtain the list of transactions with an amount greater than or equal to the decimal indicated
• toAmount: to obtain the list of transactions with an amount less than or equal to the decimal indicated
• operationType: it is possible to filter by type of operation, see table below. Multiple values allowed.

The pfm manages pagination, for this reason it is also possible to add:

• limit: the number of transactions to be obtained. The default value is 20 and the max is 300
• offset: indicates the offset and refers to the transactions not to the page. The default value is 0.

In the response you will get a pagination object:

...
"pagination": {
    "pageCount": 0,
    "resultCount": 0,
    "offset": 0,
    "limit": 20
},
...

where offset and limit indicate the optional query parameters just described, pageCount and resultCount indicate the number of pages and elements respectively.

For example, if we have an account with 40 transactions and suppose to impose a limit of 20, we will make two different requests and evaluate the offset as follows to obtain the complete list:

/accounts/movements/transactions?accountId=123&offset=0&limit=20&sortBy=-data
/accounts/movements/transactions?accountId=123&offset=20&limit=20&sortBy=-data

Searching by date (available soon)

The API wiil let to filter for different type of date.

The fromDate and toDate indicate the range and dateFilter parameter indicates the type of date . This field can assume the following values:

• data = the booking datetime
• valueDate = the value datetime
• createdDate = the created datetime
• resyncDate = the resync datetime
• createdModifiedDate = resyncDate + createdDate

Data are indicated in epochTime in ms, both those in the request and those returned in the response. Although they are in milliseconds, all the dates returned by the banks only contain information relating to the day (not the time), for this reason they will all be valued at midnight.

For example:

/movements/transactions?dateFilter=createdModifiedDate&fromDate=xxxx&toDate=yyyy

If no filter is indicated then all the transactions will be returned.

Some transactions can have valueDate null: if you use this parameter as a filter, transactions with valueDate null will not be returned. It is advisable to use the booking date (data) which is always present.

Given the definition of resyncDate for most transactions this value will be null: if you use this parameter as a filter, transactions with resyncDate null will not be returned. The purpose of this filter is to only show transactions that have been added, modified and deleted at a later time so that TPP can correct its archive / db.

Raw data vs Labeled data

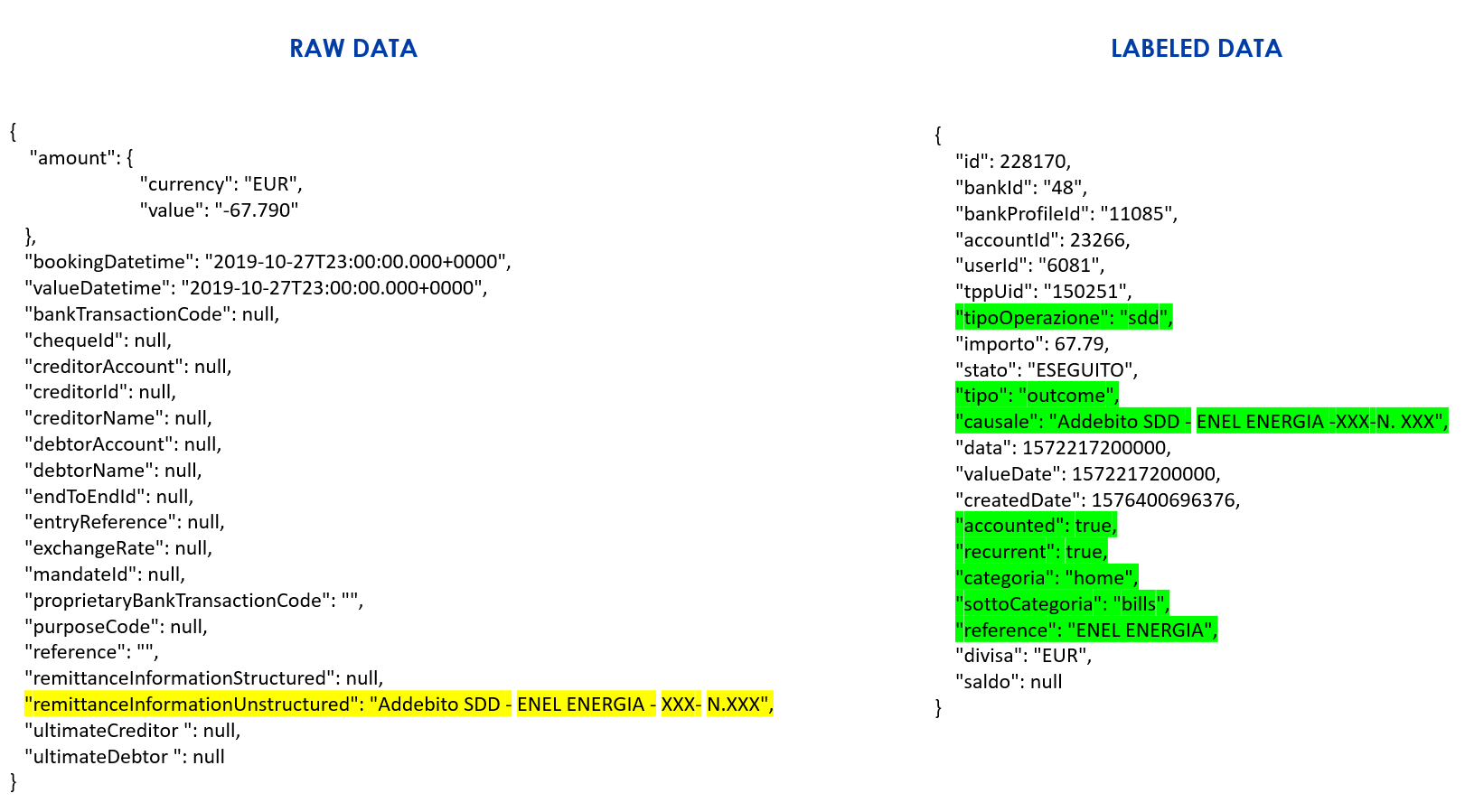

Below is an example that showcases the difference between raw data and those obtained through the service:

As mentioned the PFM is a much larger project, so the TPP will always be able to enrich its UI by integrating many other PFM features: for more information and explanations, refer to the dedicated documentation.

At the bottom of this page there are tables showing the list of all returned parameters and further details

Mapping between raw and labeled data (available soon)

To retrieve the list of movements, two different services are available:

• GET getTransaction (deprecated)
• GET getPFMTransactions (described in this document)

To reconcile the two movements you can rely on the reconciliationId parameter, a GUID created by Fabrick which will be inserted for each movement in response to the two aforementioned services.

In this way it will be possible to make the transition from the GET getTransaction service to the GET getPFMTransactions service before disposal.

Additional Data

As a value added option you can get some additional information. To date, the additional information are nomeBeneficiario and eseguitoDa.

If you are a TPP you can get it simply by adding the query param additionalData = true. Below is an example of a request:

GET /api/fabrick/.../transactions?...&additionalData=true

In the case of FPP no modification is necessary (no need to add the additionalData parameter), it will be already included,

Response parameters

**Name **	English name	Description
accounted	accounted	If the transaction has been accounted. It indicates whether the transaction is booked or pending. Fabrick doesn't apply any logic, the value it based on the information provided by the bank: if that transaction is indicated as booked then accounted will be true. According to the BG specifications, the possibility of managing pending transactions is optional, therefore some banks could only provide the booked ones.	m
accountId	accountId	Account Id	m
bankId	bankId	Bank Id	m
bankProfileId	bankProfileId	Bank profile Id	m
bankReference	bankReference	The optional transaction id provided by the bank	o
categoria	category	The category of transaction (v. next table)	m
causale	description	remittanceInformationUnstructured - psd2. Contains the description of the transaction. It can contain a maximum of 140 characters	m
causaleStructured	descriptionStructured	remittanceInformationStructured - psd2. Contains structured transaction information. To date, banks do not use this field	o
createdDate	createdDate	Date when te record was written - This is the (system) date on which the record of the transaction was received in Fabrick by querying the bank. It is not bank value	m
cro	cro	Bank Internal Id	o
data	bookingDate	Insert date in Contabile system It is the value date of the transaction, communicated by the bank - Booking date (day on which the transaction was done by the user = accounting date)	m
divisa	currency	Currency	m
entryReference	entryReference	Entry reference as received in transactions.	o
eseguitoDa	executedBy	Name and surname of the debtor	o
ibanBeneficiario	beneficiaryIban	The beneficiary IBAN.	o
id	id	transactionid	m
importo	amount	Amount of the transaction	m
importoDivisa	originalAmount	Amount in original currency	o
isBookingDateForged	isBookingDateForged	Boolean field that describes if the booking date is altered on Agata to fill in.	m
isTemporary	isTemporary	[DEPRECATED: see resyncType] if true the id parameter is not yet definitive and it surely will change the value. Some others parameters could change as well (bankReference, description,..). If false all parameters will be final and will not change their value. Useful if the TPP/ FPP needs to archive transactions	o
mcc	mcc	Merchant classification code. This parameter is valued only if operationType is crd or pos	o
merchant	merchant	Merchant name	o
merchantCity	merchantCity	Merchant city	o
nomeBeneficiario	beneficiaryName	Beneficiary name. if the transfer is incoming it is therefore obviously recoverable (corresponds to the account holder itself), but if outgoing it is recovered from the information returned by the bank, it may therefore not be valued in all cases	o
normalizedMerchant	normalizedMerchant	normalized merchant name associated with the merchant of this transaction (example: merchant = Esselunga Biella => normalizedMerchant = Esselunga	o
numeroContoAccredito	creditAccountNumber	Credited account number. if the transfer is incoming it is therefore obviously recoverable (corresponds to the account number itself); if outgoing it is recovered from the information returned by the bank	o
numeroContoAddebito	debitAccountNumber	Debited account number. if the transfer is outgoing it is therefore obviously recoverable (corresponds to the account holder itself), but if incoming it is recovered from the information returned by the bank	o
propBankTransactionCode	propBankTransactionCode	Proprietary final bank transaction code	o
recurrent	recurrent	true if it is a recurring transaction	m
reference	reference	Transaction reference. Any additional details retrieved from the Fabrick classification system. It corresponds to the pattern found in the causal by the semantic analysis	o
remittanceAdditionalInfo	remittanceAdditionalInfo	It is an array containing additional information. For example, information entered by the user can be where the bank allows it. It generally consists of a single element	o
remittanceDescriptions	remittanceDescriptions	remittanceInformationUnstructuredArray - psd2. It is an array containing the description of the transaction. Each array element can contain a maximum of 140 characters. Es: [ "COMUNE DI BIELLA", "Data Regolamento: 23/12/22", "Coord.Ordinante: ITxx xxxx xxxx xxxx xxxx xxxx xxx", "Banca Ordinante: xxxxxx-xxx", "Cro: C0xxxxxxxxx", "Note: a note... - FATT. NR. xxxxxxx", "Id.Operazione: 12345", "(BP)" ]	o
resyncType	resyncType	type of the resync	m
resyncDate	resyncDate	date of the resync phase	o
saldo	balance	Balance updated to Fabrick's latest request	m
saldoDisponibile	balanceAvailable	Available balance updated to Fabrick's latest request	m
sottoCategoria	subCategory	The sub category of the transaction (v. next section)	m
stato	status	Status of the transaction (v file next section)	m
tassoCambio	exchangeRate	Exchange Rate	o
tipo	type	income or expense: it can assume the following values: 'income' and 'outcome'	m
tipoOperazione	operationType	Operation type (v. next table)	m
tppUid	tppUid	TPP ID	m
userId	userId	User Id	m
valueDate	valueDate	Operation Date or Currency - Date at which the transaction is effective (available date)	o

causale vs remittanceDescriptions

The causale parameter can contain a maximum of 140 characters, for this reason the BG standard has added the remittanceDescriptions parameter, to allow to overcome this limit and prevent the TPP from obtaining a truncated description. Unfortunately, not all banks have implemented this evolution. In addition, the standard has left the banks free to interpret, for this reason it is not possible to establish a uniform rule. In other words, there could be different cases:

• causale and remittanceDescriptions contain exactly the same value
• causale contains the first part of the description, up to the 140th character, while remittanceDescriptions contains the entire description on several elements of the vector
• causale contains the first part of the description, up to the 140th character and remittanceDescriptions contains only the excess part, that is the truncated one.
• remittanceDescriptions could have ordered elements, that is an element for each type of information or maximize the element until reaching the limit of 140 characters and then continue on the second element

Below is an example.

{
    ...
    "causale": "GIROFONDI BANCHE ... Iban Beneficiario : IT... Data ordine: 14/0",
    "remittanceDescriptions": ["GIROFONDI BANCHE ...", "Iban Beneficiario : IT...", "Data ordine: 14/07/2022 Data reg. benef.: 14/07/2022", "CASSA AZIENDA", "FIL: 00282 N.DIST.: ..."]
    ...
}

Given the complexity, at the moment Fabrick does not carry out any mapping on these fields and returns them exactly as retrieved by the ASPSP.

Resync deepening

Sometimes banks return some transactions days after the bookingDate of the transaction itself, generally they are for example the commissions of a bank transfer or expenses related to the account perhaps close to the end of the quarter; usually we talk about 1 or 2 days.

For this reason Fabrick continues to get the transaction list with a booking date in the past, consequently some transactions could appear after the expected date.

To better manage this case, the two following parameters have been added:

• resyncType

• resyncDate

resyncType: indicates the status of the transaction. It can take the following values:

• CREATED_TEMPORARY: the transaction was just fetched from the bank, the transaction id can still change, so we suggest to avoid to archive it. This is the only state where the transaction id is still temporary (replace the deprecated boolean isTemporary).
• CREATED: the transaction is definitive, the id parameter will remain unique and invariable.
• INSERTED: a transaction added later, the id parameter will remain unique and invariable
• MODIFIED: a transaction description modified at a later time, the id won't be changed
• DELETED: a transaction deleted later (replace the old boolean isDeleted)

resyncType will be always present, this means that most of the parameters will be set to CREATED.

If the consent expires while some transactions are in the CREATED_TEMPORARY state, then it will not be possible to update the state to CREATED. The update from CREATED_TEMPORARY to CREATED will take place at the next consent renewal (obviously the transaction date must be included in the required post-consent time frame).

resyncDate: indicates the last datetime the transaction changed because of a second synchronization (resync). This means that this parameter will be valued only for the INSERTED, MODIFIED, DELETED states and it will be null for CREATED_TEMPORARY and CREATED states. Obviously in case of INSERTED it will be the same of createdDate.

Both parameters are available only in production environment

Categories and subcategories

Once the transactions have been recovered and saved on Fabrick's DBs, they are immediately available. But the categorization process starts in the same moment so it can take a few seconds. It is therefore possible to see a variation of this parameter initialized as alt (other)

DIRECTION	CATEGORY	SUBCATEGORY
INGOING	giroEntrance	na
INGOING	inboundCashManagement	na
INGOING	subsistence	na
INGOING	giftAndDonations	na
INGOING	rentIncoming	na
INGOING	refunds	na
INGOING	bondsIncome	na
INGOING	medicalRefund	na
INGOING	work	na
INGOING	pension	na
INGOING	loan	na
INGOING	win	na
INGOING	insuranceIncome	na
INGOING	othersEntrance	na
INGOING	depositsEntrance	na
OUTGOING	tax	financialsCommission
OUTGOING	transfers	extcreditCard
OUTGOING	giro	giro
OUTGOING	deposits	deposits
OUTGOING	restaurants	bar
OUTGOING	restaurants	restaurantsPizza
OUTGOING	restaurants	takeAway
OUTGOING	restaurants	othersRestaurants
OUTGOING	entertainment	cinema
OUTGOING	entertainment	musicAndFilm
OUTGOING	entertainment	bet
OUTGOING	entertainment	books
OUTGOING	entertainment	papers
OUTGOING	entertainment	theater
OUTGOING	entertainment	museums
OUTGOING	entertainment	sportEvents
OUTGOING	entertainment	videogames
OUTGOING	entertainment	othersEntertainment
OUTGOING	health	relax
OUTGOING	health	drugs
OUTGOING	health	aid
OUTGOING	health	medical
OUTGOING	health	gym
OUTGOING	health	sport
OUTGOING	health	onlus
OUTGOING	health	othersHealth
OUTGOING	tax	fines
OUTGOING	tax	financialsFees
OUTGOING	tax	taxes
OUTGOING	tax	billsPay
OUTGOING	tax	businessConsultants
OUTGOING	tax	expenseReport
OUTGOING	tax	offices
OUTGOING	tax	lawyers
OUTGOING	tax	othersTax
OUTGOING	home	rent
OUTGOING	home	supermarket
OUTGOING	home	mortgages
OUTGOING	home	interior
OUTGOING	home	homeDevices
OUTGOING	home	maintenance
OUTGOING	home	condoFees
OUTGOING	home	bills
OUTGOING	home	subscriptions
OUTGOING	home	childHood
OUTGOING	home	careGiven
OUTGOING	home	laundry
OUTGOING	home	babySitter
OUTGOING	home	veterinary
OUTGOING	home	insurance
OUTGOING	home	internet
OUTGOING	home	othersHome
OUTGOING	transfers	creditCard
OUTGOING	transfers	investments
OUTGOING	transfers	cashManagement
OUTGOING	transfers	othersTransfer
OUTGOING	school	nursery
OUTGOING	school	courses
OUTGOING	school	teachingMaterials
OUTGOING	school	schoolEducation
OUTGOING	school	university
OUTGOING	school	othersSchool
OUTGOING	travel	carMaintenance
OUTGOING	travel	telepass
OUTGOING	travel	fuel
OUTGOING	travel	trains
OUTGOING	travel	fly
OUTGOING	travel	publicTransport
OUTGOING	travel	carRent
OUTGOING	travel	bus
OUTGOING	travel	taxy
OUTGOING	travel	hotel
OUTGOING	travel	holiday
OUTGOING	travel	carSharing
OUTGOING	travel	boats
OUTGOING	travel	othersTravel
OUTGOING	shopping	clothing
OUTGOING	shopping	accessories
OUTGOING	shopping	shoes
OUTGOING	shopping	jewelry
OUTGOING	shopping	electronics
OUTGOING	shopping	sportingGoods
OUTGOING	shopping	othersShopping
OUTGOING	others	clubAndOnlus
OUTGOING	others	professionals
OUTGOING	others	tobaccoAndAlcool
OUTGOING	others	maintenanceOthers
OUTGOING	others	maintenance
OUTGOING	others	funding
OUTGOING	others	atm
OUTGOING	others	give
OUTGOING	others	othersOthers

Operation Type

You can get the updated list of values via API:

POST {{domain}}/access/transactions/operationType/search
{

}

is possible to filter for a specific value:

POST {{domain}}/access/transactions/operationType/search
{
  "operationType": "ver"
}

tipoOperazione	Operation	Italian description
aec	Addebito e/c carta	Addebito e/c carta
aft	Anticipo fattura	Anticipo fattura
alt	other	Altri movimenti
amz	Amazon Gift Voucher Payment	Gift Amazon
ass	check	Assegno
atm	debit card atm	Prelievo da sportello ATM
baf	SCT fiscel reduction	Bonifico Agevolazione Fiscale
bap	SCT foreign countries	SEPA Credit Transfer - estero
bil	bills	Bollettini postali
blt	bills	Bollette
boa	car tax	Bollo auto
bog	generic SCT (deprecated)	SCT generico (deprecated)
boi	SCT instant	SEPA Credit Transfer Instant
bol	stamp tax	Imposta di bollo
bon	SCT italy	SEPA Credit Transfer in Italia
bop	periodical SCT	SEPA Credit Transfer ricorrente
can	lease	Canone
cas	Commissioni assegni	Commissioni assegni
cbi	C-bill	Pagamento bollettini postali
cbl	Commissioni bollettino	Commissioni bollettino
cbn	Commissioni bonifico	Commissioni bonifico
cca	Commissioni Carta	Commissioni Carta
ccr	credit card (deprecated)	Pagamento con cata di credito (deprecated)
cdd	Commissioni sdd	Commissioni sdd
cds	Commissioni distinta	Commissioni distinta
cfi	Commissioni fideiussioni/fido	Commissioni fideiussioni/fido
cid	Commissioni insoluto sdd	Commissioni insoluto sdd
cir	Commissioni insoluto riba	Commissioni insoluto riba
com	commission	Commissioni
cpl	Commissioni prelievo	Commissioni prelievo
cpo	Commissioni/canone POS	Commissioni/canone POS
crd	debit card ecommerce	Pagamento online
crg	Carte Generic	Carte Generic
cri	Commissioni su presentazioni ri.ba	Commissioni su presentazioni ri.ba
div	Dividendi e cedole	Dividendi e cedole
dst	Distinta	Distinta
f24	F24	Modello F24 utilizzato in Italia per il pagamento di gran parte delle imposte, delle tasse e dei contributi
fat	invoice	Pagamento fattura utenza
fin	Finanziamenti	Finanziamenti
gir	transfer entry	Giroconto
idd	Insoluti sdd	Insoluti sdd
ins	Insoluti effetti	Insoluti effetti
int	interests	Accredito Interessi
irb	Insoluti RIBA	Insoluti RIBA
lin	deposit	Conto deposito
lor	Discount revenue	Ricavo sconto lordo
mav	MAV	MAV: Pagamento mediante avviso tramite bollettino
net	revenues	Altri ricavi
p2p	bank transfer	Trasferimento bancario
par	Partita prenotata	Le partite prenotate sono delle voci in addebito che la banca rende indisponili in attesa di regolare le operazioni. Ad esempio gli assegni che versi sul tuo conto corrente sono indisponibili fino a quando l'istituto titolare dell'assegno comunica la copertura dello stesso.
pol	Polizze	Polizze
pos	debit card pos	Pagamento tramite POS
ppa	PagoPA	sistema dei pagamenti a favore delle pubbliche amministrazioni e dei gestori di pubblici servizi in Italia
pre	deprecated
prs	Prestiti	Prestiti
rat	Card Recharge	Ricarica carta
rav	RAV	RAV: Ruoli Mediante Avviso) - utilizzato per pagare somme iscritte a ruolo (ovvero tasse, tributi, sanzioni amministrative, ecc. verso l'Agenzia delle Entrate, Inps, Comuni, Province e Regioni)
rcp	Card Recharge	Ricarica carta
rdc	Ricavo effetti al dopo incasso	Ricavo effetti al dopo incasso
rib	Riba	Riba (Ricevuta Bancaria) è uno strumento finanziario molto usato da imprese e professionisti che permette di agevolare i pagamenti tramite banca
ric	mobile recharge	Ricarica telefonica
rim	reversal	Rimborso da altri enti
rit	bank tax	Ritenuta su interessi
rtf	Rettifiche	Rettifiche
rvs	Reversal	Storno
sdd	Sepa Direct Debit	SDD, addebito diretto, o domiciliazione bancaria
spc	Spese comunicazioni	Spese comunicazioni
spe	expense	Spese
spo	Prelievo sportello	Prelievo sportello
ssb	Disposizione SBF stornate/insolute	Disposizione SBF stornate/insolute
sti	salary	Accredito stipendio/pensione
tas	taxes	Pagamento imposte
tit	stocks and bonds	Titoli e obbligazioni
utz	generic payments	Pagamenti generici
ver	payment / deposit	Versamento

Stato - Status

Tipo mov.	Tipo op.	stato	descrizione	default
Bonifico	lin , p2p , bon, boi , bap, baf ,gir	ATTESA_AUTOR	da eliminare in attesa di autorizzazione
		ATTESA_AUTOR_GRUPPO	NON IN USO - attesa di autorizazione gruppo
		ATTESA_CONFERMA_DA_TESORERIA	ATTESA CONFERMA DA TESORERIA
		ATTESA_CONF_RETE	in attesa di conferma da rete
		ATTESA_DI_AUTORIZZAZIONE	in attesa di autorizzazione
		ATTESA_DI_AUTORIZZA_GRUPPO	attesa di autorizzazione gruppo
		ATTESA_TESOR	in attesa di conferma da tesoreria
		AUTORIZZATO_T2S	AUTORIZZATO T2S
		DA_AUTORIZZARE	da autorizzare
		DA_AUTORIZZARE_GRUPPO	da autorizzare gruppo
		DA_AUTORIZZARE_T2S	DA AUTORIZZARE T2S
		DA_CONTABILIZZARE_FTF	Da contabilizzare ftf
		DA_ESEGUIRE	da eseguire
		DA_INVIARE_FTF	da inviare via FTF
		DA_INVIARE_OUT_T2S	Messaggio da inviare in banca diretta senza ulteriore contabilizzazione
		DA_INVIARE_OUT_T2S_DOPO_AUT	da inviare come banca diretta in attesa di autorizzazione
		DA_PREPARARE	da preparare
		INSERITO_RDC_T2S	Messaggio da inviare in banca diretta con contabilizzazione su A7 della banca ordinante
		INSERITO_T2S	INSERITO T2S
		INVIATO	inviato
		ESAURITO	bonifico altro istituto >> ESAURITO >> bonifico riaccreditato all'ordinante perchè rifiutato	X
			bonifico stesso istituto >> ESAURITO >> bonifico accreditato sul conto beneficiario
			bonifico in entrata >> ESAURITO >> bonifico accreditato sul conto beneficiario
		INVIO_DATA_FUTURA_SEBA	In attesa di maturazione regolamento per invio SEBA
		INVIO_DATA_FUTURA_SEPA	In attesa di maturazione regolamento per invio SEPA
		IN_ATTESA_AUT_CAMBIO_E_CSSE	IN_ATTESA_AUT_CAMBIO_E_CSSE
		IN_ATTESA_DI_BIBO	stato intermedio per banca indiretta quando viene registrato il bibo nella banca mittente
		IN_ATTESA_DI_INVIO	IN_ATTESA_DI_INVIO
		IN_ATTESA_DI_INVIO_E_AUT	da inviare come banca indiretta in attesa di aut. da banca ordinante
		IN_ATTESA_DI_INVIO_E_CSSE	IN_ATTESA_DI_INVIO_E_CSSE
		IN_ATTESA_E_AUT	da inviare come banca indiretta in attesa di aut. da banca mittente
		IN_ATTESA_E_AUT_E_CSSE	IN_ATTESA_E_AUT_E_CSSE
		IN_ATTESA_E_CSSE	IN_ATTESA_E_CSSE
		IN_ATTESA_INVIO_E_AUT_E_CSSE	IN_ATTESA_INVIO_E_AUT_E_CSSE
		IN_ATTESA_PER_AUT_E_CAMBIO	IN_ATTESA_PER_AUT_E_CAMBIO
		IN_ATTESA_PER_AUT_E_CSSE	IN_ATTESA_PER_AUT_E_CSSE
		IN_ATTESA_PER_AUT_E_FISSAZIONE_CAMBIO	cambio a listino inserito in attesa di autorizzazione e di fissazione cambio
		IN_ATTESA_PER_CAMBIO	IN_ATTESA_PER_CAMBIO
		IN_ATTESA_PER_CAMBIO_E_CSSE	IN_ATTESA_PER_CAMBIO_E_CSSE
		IN_ATTESA_PER_CSSE	IN_ATTESA_PER_CSSE
		IN_ATTESA_PER_FISSAZIONE_CAMBIO	cambio a listino inserito in attesa di fissazione cambio
		IN_ATT_PER_SMISTAMENTO	In attesa di smistamento
		IN_ATT_PER_SMISTAMENTO_E_AUT	In attesa di smistamento e autorizzazione
		IN_ATT_PER_SMISTAMENTO_E_CSSE	IN_ATT_PER_SMISTAMENTO_E_CSSE
		IN_ATT_PER_SMIS_AUT_CSSE	IN_ATT_PER_SMIS_AUT_CSSE
		IN_ESECUZIONE	in esecuzione
		PRENOTATO 1	Prenotato bonifico stesso istituto e bonifico altro istituto italia
		PRENOTATO_LISTINO	prenotato per listino
		PRENOTATO_STESSO_OUT 1	Prenotazione compravendita divisa o bonifico stesso istituto in divisa
		PRENOTATO_T2S 1	Prenotato Bonifico altro istituto estero
Bonifico Ordini Permanenti	bop	ESAURITO		X
Debit Card	crd, pos, atm	NEGAZIONE	Declined
		STORNO	Reversal or Cancelled
		AUTORIZZAZIONE / PREAUTORIZZAZIONE	Authorized / PRE Authorized (is applicable for Fuel station cases)
Credit Card	ccr	ANNULLATO DA POS
		CASH
		RETTIFICA
		SPESA		X
		STORNO
MAV/RAV	mav/rav	Pagato	P (actual service response)	X
		Prenotato	I
		Annullato	A
		Stornato	N
		Non Pagato / Errato	E
		Sconfino	S
F24	f24	Pagata		X
		Prenotata
		InSospeso
		Annullata
		NonPagata
CBILL	cbi	PAGATO		X
		CANCELLATO
		INSERITO
		PRENOTATO
Pago PA	ppa	INSERITO
		CANCELLATO
		PAGATO		X
		PRENOTATO
Bollettini	bil	INSERITO
		PAGATO		X
		CANCELLATO
		PRENOTATO
		STORNATO
RiBa	rib	Pagato		X
		Prenotato
		Addebitato al cedente
Partita prenotata	par	PRENOTATO
Ricarica cellulare	ric	PRENOTATO
		ESEGUITO		X
Ricarica con carta	rat	ESEGUITO		X
Sepa Direct Debit	sdd	ESEGUITO		X

PFM Guidelines

This document describes the guidelines and some recommendations regarding the PFM service.

GET getPfmTransactions

The API in question is the following:

/api/fabrick/pfm/psd2/fabrick/v4.0/movements/transactions

If the FPP invokes the service without any parameters (as above), the default values will be applied, namely:

• dateFilter will be createdModifiedDate (created || resync)
• toDate will be equal to the current day
• fromDate will be equal to the current day - 1

The above request will therefore be equivalent to the following:

/api/fabrick/pfm/psd2/fabrick/v4.0/movements/transactions?dateFilter=createdModifiedDate&fromDate=[today-1]&toDate=[today]

Details regarding the input and output parameters are described in the specific PFM document.

When should the API be invoked?

Given the 4 automatic daily updates performed by Fabrick, we recommend invoking the API in succession after each of these 4 slots. As an additional safety margin, we also recommend allowing 1 hour after each Fabrick update, as there may be delays depending on the volume of data. The FPP could therefore invoke GET getPfmTransactions at the following slots:

1. 09:30
2. 12:30
3. 15:30
4. 18:30

It is possible to invoke the API at any time, but obviously within the three-hour gap between one slot and the next — or in the time window between evening and morning — the FPP will receive exactly the same output, since no updates will have occurred.

It is therefore recommended to implement a scheduler in order to optimise the number of daily requests.

If the FPP's goal is to archive data and it is not necessary to use the current day's data, the API could also be invoked just once a day.

How should the API be invoked?

As can be seen from the specification documentation, it is possible to filter by various parameters and also by different date types.

We recommend filtering by the createdModifiedDate date and setting a time interval of just one day, as shown in the following example:

/api/fabrick/pfm/psd2/fabrick/v4.0/movements/transactions?dateFilter=createdModifiedDate&fromDate=[today-1]&toDate=[today]

This optimises the volume of data returned in the response.

It is of course necessary for the consent to always be active, meaning the PSU must renew it before it expires. Otherwise, the FPP will need to be prepared to adjust the date and therefore the time range of the data request. For example, if the PSU renews their consent 20 days after its expiry, the FPP will need to request the list of movements for the past 20 days rather than just the last 24 hours.

Depending on the behaviour and booking processes of the various banks, it may happen that, for the same createdModifiedDate, the data parameter (booking date) differs — for example, by one or two days in the past.

If only createdDate were used as a filter, inserted movements would not be missed, but cancelled or modified movements would be.

Archiving: which parameter should be used?

This section contains a suggested guideline for all those FPP or TPP AISP companies that, in addition to recovering and viewing their customers' transactions, wish to archive them within their databases.

Unfortunately, the different behaviors of banks from the point of view of accounting and transactions management add a level of complexity that does not allow us to extract a general and effective rule.

Obviously for the FPP or TPP that creates an app retrieving the transactions from Fabrick only to view and/or show them to its customer, this does not cause any problem, as all the transactions are real.

The problem could arise se the FPP or TPP wanted to archive the transactions received in real time within their databases: it is obvious that today's transactions are neither total nor definitive. The main gap is certainly not being able to rely on a unique id for each transaction, in fact the referenceId which corresponds to the transaction id is not a mandatory parameter for the PSD2 regulation, in addition to the fact that it is not guaranteed to be unique. For this, and several other reasons, the FPP/TPP will have to be based on the resyncType parameter in response to the GET getPfmTransactions (see PFM doc).

If the FPP wishes to archive movements in their own database, we recommend using the id parameter as the basis. This parameter, defined by Fabrick, will always be definitive and unique, and can therefore be used as a primary key.

The only point to be aware of is to verify that the movement is not still in a temporary state, as in that case the id parameter may still change. To do so, it is necessary to evaluate the resyncType parameter and verify that it is different from CREATED_TEMPORARY.
